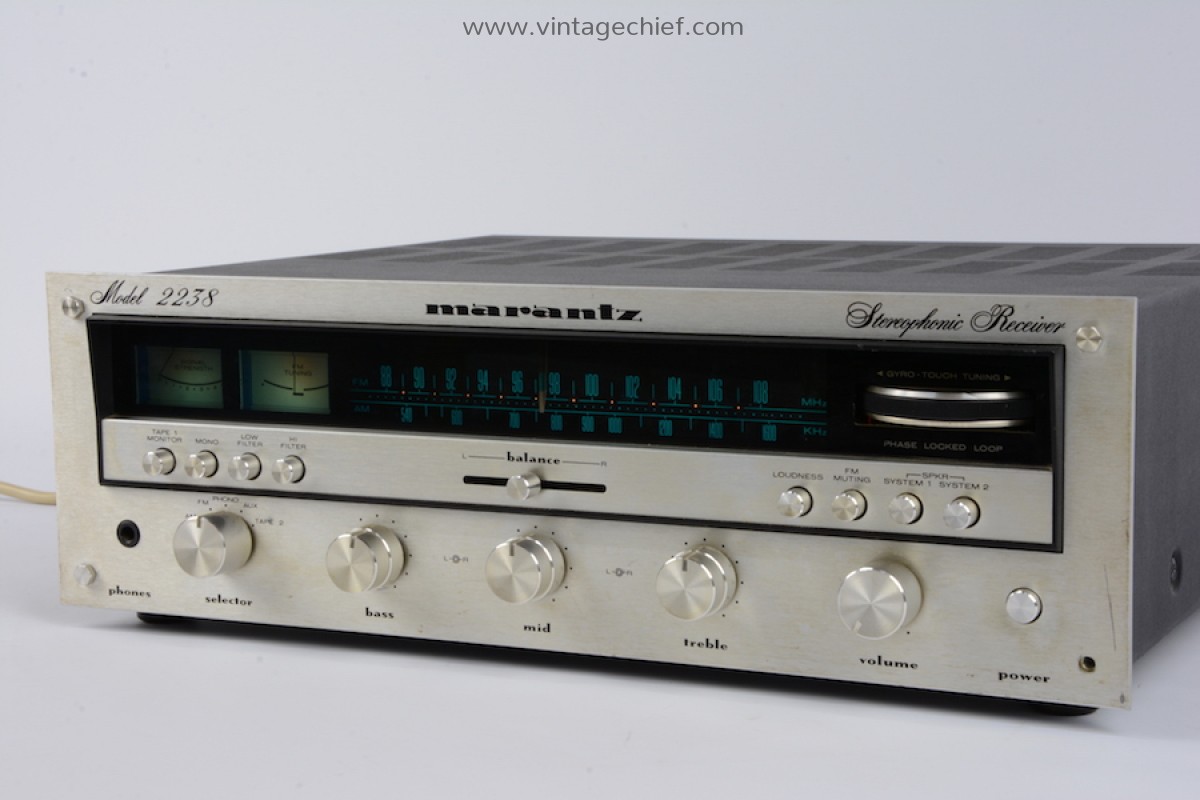

Marantz 2238 Receiver
- € 0.00
Serviced vintage Marantz 2238 stereo FM / AM stereo receiver. The Marantz 2238 receiver delivers 42 watts per channel (8 ohm) and features include a phono input and tone control.
Ex Tax: € 0.00
Availability: Out Of Stock
Brands Marantz
Product Code: 21155
Tags: Marantz 2238 ReceiverMarantz 22382238MarantzMarantz ReceiverMarantz AudioMarantz StereoMarantz AmplifierVintage MarantzMarantz VintageMarantz TunerReceiverAmplifierTunerVintage ReceiverStereo ReceiverMarantz 2238 SpecificationsSpecsSpecificationsTunerAuxPhonoClassicAudioHiFi
Specifications Marantz 2238 receiver:
- Aux, Phono, Tape 1, Tape 2, Pre Out, Main In, Speaker System 1 + 2, Tone Control, Loudness
- Tuning range: FM, AM
- Power output: 38 watts per channel into 8Ω (stereo)
- Frequency response: 15Hz to 60kHz
- Total harmonic distortion: 0.1%
- Damping factor: 45
- Input sensitivity: 1.8mV (MM), 180mV (line)
- Signal to noise ratio: 75dB (MM), 87dB (line)
- Output: 775mV (line), 1.5V (Pre out)
- Semiconductors: 3 x IC, 45 x transistors, 29 x diodes, 1 x FET
- Dimensions (W x H x D): 440 x 137 x 365 mm
- Weight: 12 kg
For sale:
Serviced vintage Marantz 2238 stereo FM / AM stereo receiver.
The Marantz 2238 receiver delivers 38 watts per channel (8 ohm) and features include a phono input and tone control.
Condition:
Technical condition: 10 / 10
Cosmetic condition: 6 / 10
Electric power requirements:
Input voltage: 110 / 120 / 220 / 240 V
Input frequency: 50 Hz
