Onkyo M-8000 Power Amplifier

€ 0.00

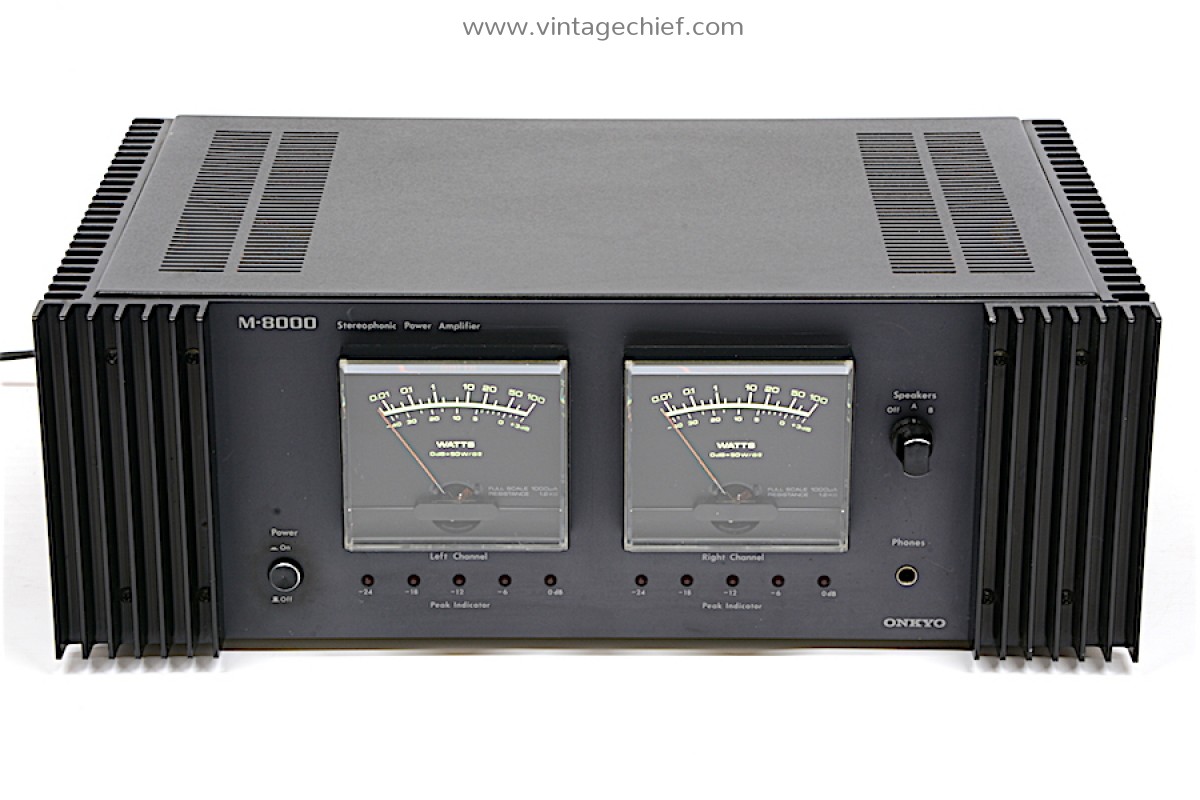

Serviced vintage Onkyo M-8000 stereo power amplifier (1978). The Onkyo M-8000 power amplifier delivers 50 watts per channel (8 ohm) and features a pair of big illuminated VU-meters.

Add to Wish List

Compare this Product

Ex Tax: € 0.00

Availability: Out Of Stock

Brands Onkyo

Product Code: 21078

Tags: Onkyo M8000 Power Amplifier Onkyo M-8000 Power Amp Onkyo M-8000 Power Amplifier Onkyo M8000 Power Amp Onkyo M-8000 Onkyo M8000 Onkyo M-8000 Specifications Specs Specifications Onkyo Power Amplifier Onkyo Amplifier Onkyo Onkyo Audio Onkyo Stereo Power Amplifier Power Amp Stereo Stereo Power Amplifier Stereo Power Amp Power Vintage Power Amplifier Vintage Power Amp VU Meters Stereo Black Classic 1978 70s 70s Audio Seventies Style Design Vintage Vintage Audio HiFI Audio

Description
Specifications

Specifications Onkyo M-8000 power amplifier:
- effective output: 50w+50w (20hz - 20khz, both channel drive, 8-ohm load intensity)
- thd: 0.1% Or less (at the time of an output power 1khz)
- cross modulation distortion: 0.1% Or less (at the time of a smpte output power)
- output bandwidth: 5hz - 30khz (ihf-3db, 0.1%)
- frequency characteristic: 4hz - 100khz, and +0 -1.5 Db
- input sensitivity/impedance: 1000mv / 50kohm
- load impedance: 8 ohm
- damping factor: 50 (dc-20khz, 8ohm)
- s/n ratio: 110db or more
- dimensions (W x H x D): 418 x 152 x 274 mm
- weight: 10 kg

Product:
Serviced vintage Onkyo M-8000 stereo power amplifier (1978).

The Onkyo M-8000 power amplifier delivers 50 watts per channel (8 ohm) and features a pair of big illuminated VU-meters.

Condition:
Technical condition: 10 / 10
Cosmetic condition: 8 / 10

Electric power requirements:
Input voltage: 220 V
Input frequency: 50 Hz
