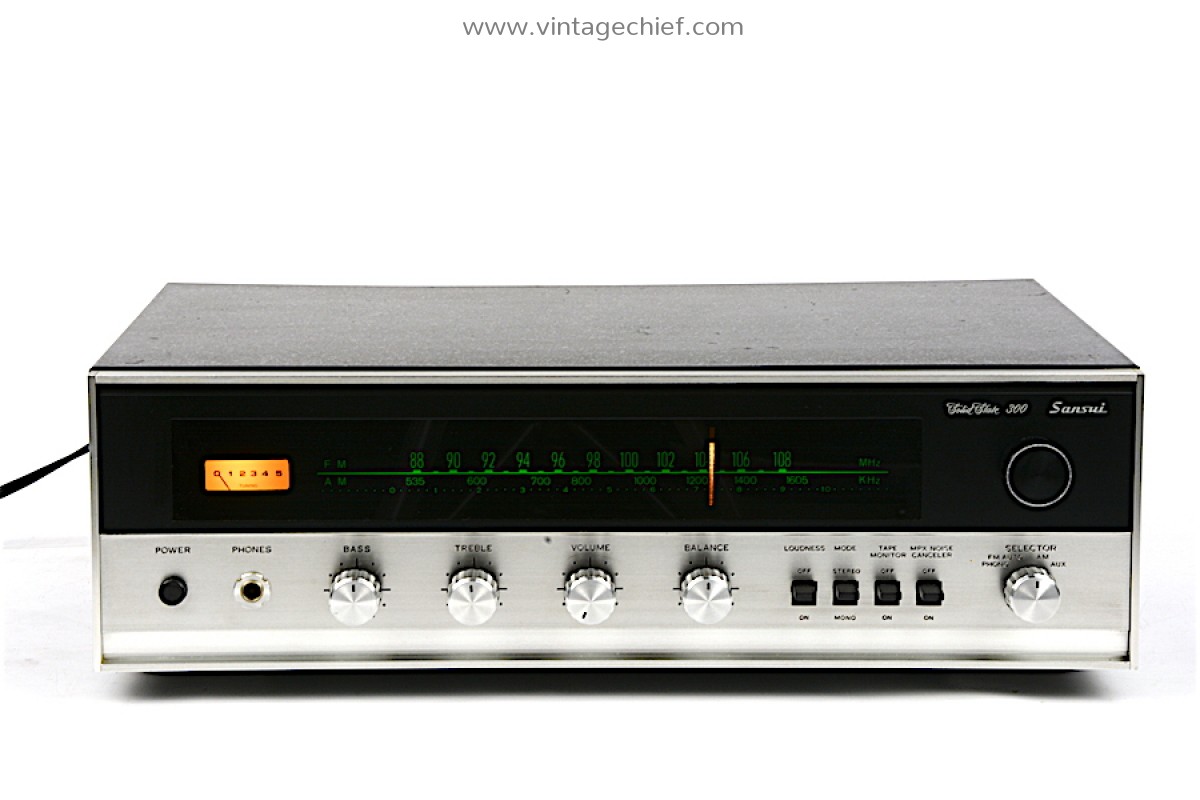

Sansui Solid State 300 Receiver

€ 0.00

Serviced vintage Sansui Solid State 300 FM / AM stereo receiver. The Sansui Solid State 300 delivers 14 watts per channel (8 ohm) and features include tone control and a phono stage.

Ex Tax: € 0.00

Availability: Out Of Stock

Brands Sansui

Product Code: 21750

Tags: Sansui 300 Sansui 300 Receiver Sansui Solide State 300 Sansui Solide State Receiver Solid State Solid State Receiver Sansui Receiver Stereo Sansui Audio Sansui Vintage Audio Sansui Solid State 300 Specifications Specs Specifications Vintage Receiver Receiver Vintage Sansui Classic Phono Tone Control HiFi Stereo Audio

Description
Specifications

Specifications Sansui Solid State 300 receiver:
- Phono, Aux, Tape (Rec / Play), Tone Control, Loudness
- Tuning range: FM, AM
- Power output: 14 watts per channel into 8Ω (stereo)
- Frequency response: 25Hz to 30kHz
- Total harmonic distortion: 1%
- Damping factor: 20
- Input sensitivity: 3mV (MM), 180mV (DIN), 180mV (line)
- Signal to noise ratio: 65dB (MM), 70dB (line)
- Channel separation: 40dB (MM), 45dB (line)
- Output: 180mV (line), 30mV (DIN)
- Speaker load impedance: 4Ω to 16Ω
- Semiconductors: 36 x transistors, 1 x FET, 2 x varistors, 1 x thermistor, 18 x diodes, 1 x zener diode
- Dimensions (W x H x D): 40 x 12,1 x 27,9 cm
- Weight: + / - 9.5 kg
- Year: 1970
