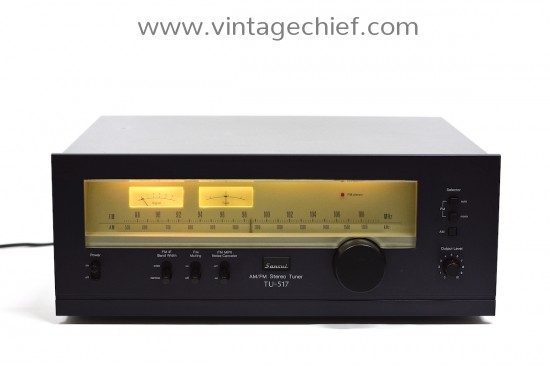

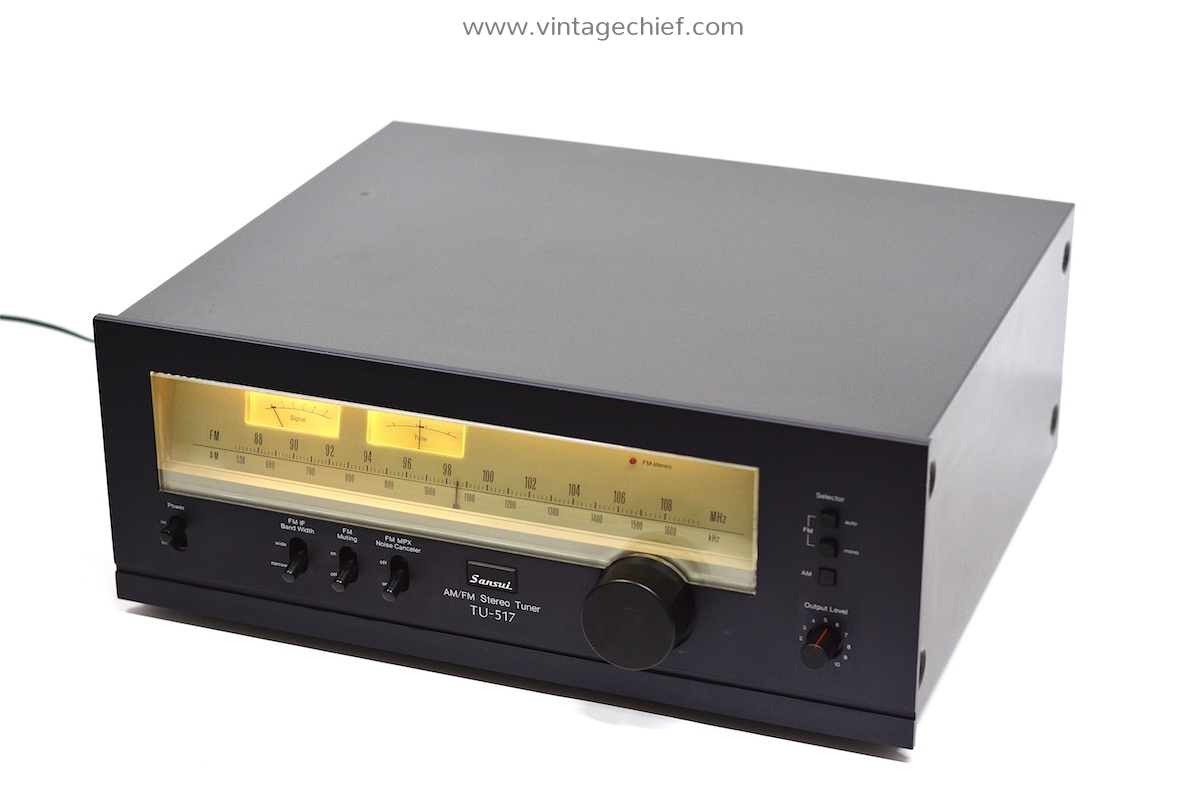

Sansui TU-517 FM / AM Tuner

€ 499.00

Serviced high end vintage Sansui TU-517 FM / AM tuner. The Sansui TU-517 tuner matches many Sansui amplifiers, for example the Sansui AU-117, AU-117 II, AU-217, AU-217 II, AU-317, AU-317 II, AU-417, AU-517, AU-717 and the Sansui AU-919 amplifier.

Ex Tax: € 499.00

Availability: Out Of Stock

Brands Sansui

Product Code: 22235

Tags: Sansui TU-517 Tuner Sansui TU517 TU-517 TU517 Sansui TU-517 Sansui TU Sansui Sansui Tuner TU-517 Sansui TU-517 Specifications Analogue Tuner Analog Tuner Analog Audio Design High End Audio High End Tuner High End Radio High End Sansui Sansui High End High End Style 1978 1979 Seventies 70s 70s Audio Specs Specifications Radio Stereo Sansui AU-517 FM AM Tuner Audio Vintage Tuner Vintage Audio Vintage Classic HiFi

Description
Specifications

Specifications Sansui TU-517 tuner:
- Type: Stereo Tuner
- Tuning Bands: FM, AM
- Tuning Scale: Analogue
- FM Tuning Range: 88 to 108 MHz
- AM Tuning Range: 530 to 1600 kHz
- Sensitivity: 1.7uV (FM), 220uV (AM)
- Signal to Noise Ratio: 78dB (FM), 52dB (AM)
- Distortion: 0.2% (FM), 0.35% (AM)
- Selectivity: 80dB (FM), 35dB (AM)
- Frequency response: 30Hz to 15kHz (FM)
- Output: 1000mV
- Dimensions (W x H x D): 430 x 168 x 402 mm
- Weight: 8.7 kg

Product:
Serviced high end vintage Sansui TU-517 FM / AM tuner (1978 - 1979).

The Sansui TU-517 tuner matches many Sansui amplifiers, for example the Sansui AU-117, AU-117 II, AU-217, AU-217 II, AU-317, AU-317 II, AU-417, AU-517, AU-717 and the Sansui AU-919 amplifier.

Condition:
Technical condition: 10 / 10
Cosmetic condition: 9 / 10

Electric power requirements:
Input voltage: 100 / 120 / 220 / 240 V (fuse for 220 / 240 V fitted)
Input frequency: 50 / 60 Hz
