Sony STR-6036A Receiver
- € 299.00

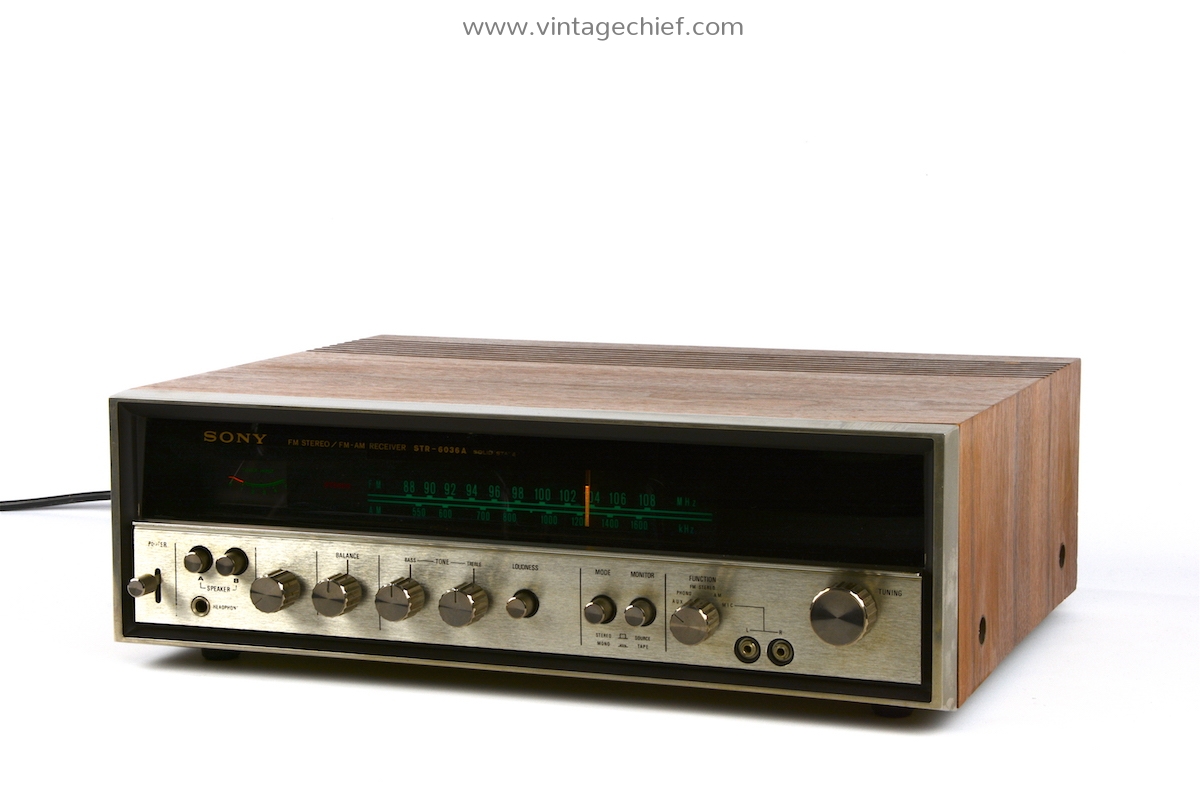

Vintage Sony STR-6036A FM / AM stereo receiver with wooden case (1973 -1974). The Sony STR-6036A receiver delivers 15 watts per channel (8 ohm) and features include tone control and a phono stage.
Ex Tax: € 299.00
Availability: 1
Brands Sony
Product Code: 20713
Tags: Sony STR-6036A ReceiverSony STR-6036ASony STR-6036STR-6036ASTR-6036STR6036ASTR6036Sony STRSony ReceiverSony Stereo ReceiverSonySony AudioSony StereoSony AmplifierAmplifierTunerSony TunerSony STR-6036A SpecificationsSpecsSpecificationsVintage AudioVintage AmplifierVintage ReceiverVintage Sony70s70s AudioSeventies19731974AmplifierAmpWooden CaseWoodcaseReceiverStereo ReceiverTapeTunerAuxPhonoVinylLPTone ControlHiFiClassicStereoAudio
Specifications Sony STR-6036A receiver:
- Phono, Aux, Tape (In /Out), Speaker A + B, Tone Control, Loudness
- Tuning range: FM, AM
- Power output: 15 watts per channel into 8Ω (stereo)
- Frequency response: 10Hz to 60kHz
- Total harmonic distortion: 0.8%
- Input sensitivity: 2mV (mic), 2.5mV (MM), 250mV (DIN), 250mV (line)
- Signal to noise ratio: 60dB (mic), 60dB (MM), 80dB (DIN), 70dB (line)
- Output: 250mV (line), 30mV (DIN)
- Speaker load impedance: 4Ω to 16Ω
- Semiconductors: 2 x IC, 2 x FET, 27 x transistors, 19 x diodes
- Dimensions (W x H x D): 434 x 145 x 348 mm
- Weight: 8.6 kg
Product:
Vintage Sony STR-6036A FM / AM stereo receiver with wooden case (1973 -1974).
The Sony STR-6036A receiver delivers 15 watts per channel (8 ohm) and features include tone control and a phono stage.
Condition:
Technical condition: 10 / 10
Cosmetic condition: 7.5 / 10
Electric power requirements:
Input voltage: AC 100 / 117 / 220 / 240 V
Input frequency: 50 / 60 Hz
